AGNITAR CO2 Fire Suppression Systems | Carbon Dioxide

AGNITAR CO2 Fire Suppression Systems offer fast, clean, and high-pressure protection. Ideal for local and total flooding systems. TPED and VdS certified. Optional weighing device for safety monitoring.

AGNITAR CO2 Fire Suppression Systems deliver high-pressure, fast-acting, and residue-free fire protection using Carbon Dioxide (CO2). Designed for industrial and electrical applications, this system offers both local application and total flooding options, and supports multi-room protection via directional valves.

CO₂ suppresses fire by displacing oxygen and absorbing heat, making it an excellent solution for non-occupied, high-risk areas. As a non-conductive, non-corrosive, and non-toxic extinguishing agent, it is safe for use around electronics and sensitive equipment.

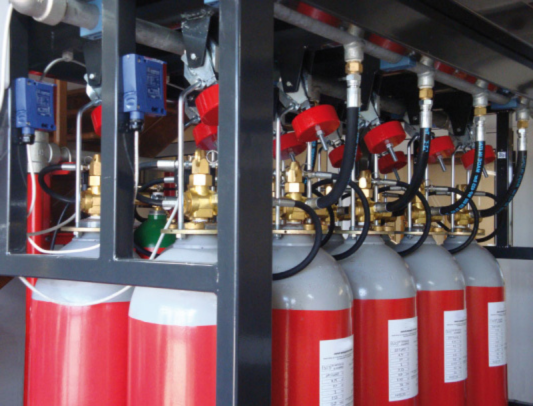

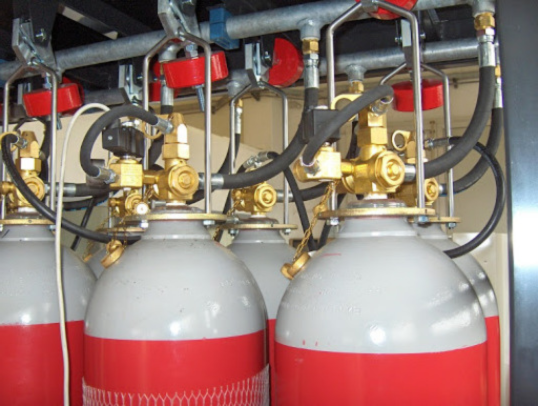

AGNITAR's system also includes an optional Weighing Device, which provides real-time monitoring of cylinder pressure through a spring-loaded mechanical system with built-in contact for alarm activation. This feature enhances safety and maintenance efficiency, ensuring the system is always ready to discharge.

Certifications & Compliance

AGNITAR systems use components that are globally certified:

• TPED Approved Cylinders
• VdS Approved Valve Groups, Nozzles, and Flexible Hoses, Hydraulic Calculations
• Designed in accordance with NFPA 12, ISO 6183, and EN 12094
• Certifications such as UL, FM, VdS, and LPCB are globally recognized in system components and should be considered in all compliant installations.

Key Benefits

• High-pressure system allows long-distance installation
• Non-toxic and non-corrosive – safe for people-free zones
• No residue – protects electronics and prevents downtime
• Directional valve setups reduce costs in multi-room buildings
• Supports both total flooding and local application
• Certified system components ensure international compliance

Technical Specifications

• Agent: Carbon Dioxide (CO2)
• System Type: Total Flooding / Local Application
• Actuation: Electric / Pneumatic / Manual
• Temperature Range: -20°C to +50°C
• Cylinder Options: 67L and above (custom available)
• Certifications: TPED, VdS, EN, ISO, NFPA

Application Areas

• Electrical Rooms & Transformer Compartments
• Data Centers & Server Rooms
• Marine Engine Rooms
• Paint Booths & Manufacturing Zones
• Archives, Museums, Libraries
• Hazardous Material Storage Areas
• Turbine Rooms & Rolling Mills
• Multi-room Industrial Buildings

Local Application – Targeted Fire Suppression

AGNITAR's Local Application CO2 systems are designed to suppress fires at the point of origin, without flooding the entire room. This method delivers the extinguishing agent directly to specific hazards such as:

• Control panels
• Industrial machinery
• Electrical cabinets
• Paint lines
• CNC machines

This targeted approach reduces the amount of gas required and offers faster suppression and less downtime, especially in facilities with non-occupied machinery areas. AGNITAR's systems are designed for flexible nozzle positioning and custom discharge configurations, ensuring maximum efficiency where full flooding is not necessary

Why Choose Agnitar CO₂ Fire Suppression Systems?

• High-Pressure Design: Effective even over long pipe distances
• Economical Multi-Zone Solution: Supports directional valves
• Certified Components: TPED and VdS approved
• Optional Weighing Device: Real-time safety monitoring
• No Residue: Zero damage to sensitive equipment
• Non-Conductive: Safe for electronics
• Flexible Configuration: Local or total flooding options
• Engineered to Global Standards: Designed per NFPA, EN, ISO
